Family BASIC Typeins

This page hosts Family BASIC typeins archived from period publications. Shorter listings are presented in code blocks here and longer listings are hosted in external repositories.

Family BASIC V2

V2.0A & V2.1A. Compatibility with V3.0 is not guaranteed.

Disassembler/Assembler/Monitor

Three typeins by Norihito Ushijima (牛島憲人) from Famicom Hacking Manual (ファミコン改造マニュアル) Vol. 3 which can disassemble 6502 machine code, assemble 6502 code (bytecode preview only), and view/edit memory contents.

Repo

Disassembler screenAssembler screen Monitor Screen

CHR-RAM Mod

A CHR-RAM modification of Family BASIC by Saburou Tama (多摩三郎) was documented in Backup Utilisation Techniques (バックアップ活用テクニック) Part 4. The hardware modification replaces the sprite pattern table with CHR-RAM, allowing for custom graphics while keeping the text characters (background pattern table) in CHR-ROM. The CHR-ROM data was intended to be dumped to cassette tape beforehand so it could be reloaded later on. Typeins for the SHARP X1 were also provided to enable the loading, editing, and exporting of this data.

TODO:

Kanji Display

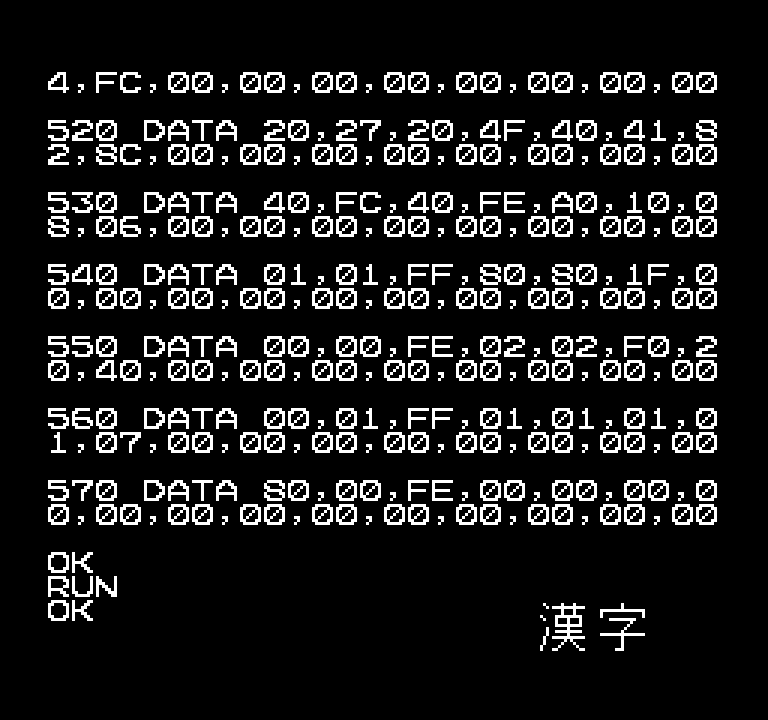

This typein accompanied the hardware modification article to demonstrate the custom graphics.

10 CLEAR &H7700
20 RESTORE 200
30 FOR I=0TO 41
40 READ A$:A=VAL("&H"+A$)
50 POKE &H7700+I,A
60 NEXT
70 GOTO 300
80 '
200 DATA A9,0B,85,63              'LDA #0B       STA 63
210 DATA A5,63,D0,FC              'LDA 63        BNE FC
220 DATA AD,80,77,8D,06,20        'LDA 7780      STA 2006
230 DATA AD,81,77,8D,06,20        'LDA 7781      STA 2006
240 DATA AD,82,77,8D,07,20        'LDA 7782      STA 2007
250 DATA A5,9D,8D,05,20           'LDA 9D        STA 2005
260 DATA A5,69,8D,05,20           'LDA 69        STA 2005
270 DATA A9,1E,8D,01,20,60        'LDA 69   STA 2001   RTS
280 '
300 SPRITE ON
310 DEF SPRITE 0,(0,1,0,0,0)=CHR$(0)+CHR$(1)+CHR$(2)+CHR$(3)
320 DEF SPRITE 1,(0,1,0,0,0)=CHR$(4)+CHR$(5)+CHR$(6)+CHR$(7)
330 SPRITE 0,180,200
340 SPRITE 1,200,200
350 '
360 POKE &H7780,0
370 RESTORE 500
380 FOR I=0 TO &H7F
390 POKE &H7781,I
400 READ A$:A=VAL("&H"+A$)
410 POKE &H7782,A
420 CALL &H7700
430 NEXT
440 END
450 '
500 DATA 41,2F,01,01,87,44,04,07,00,00,00,00,00,00,00,00
510 DATA 10,FE,10,10,FC,44,44,FC,00,00,00,00,00,00,00,00
520 DATA 20,27,20,4F,40,41,82,8C,00,00,00,00,00,00,00,00
530 DATA 40,FC,40,FE,A0,10,08,06,00,00,00,00,00,00,00,00
540 DATA 01,01,FF,80,80,1F,00,00,00,00,00,00,00,00,00,00
550 DATA 00,00,FE,02,02,F0,20,40,00,00,00,00,00,00,00,00
560 DATA 00,01,FF,01,01,01,01,07,00,00,00,00,00,00,00,00
570 DATA 80,00,FE,00,00,00,00,00,00,00,00,00,00,00,00,00

Kanji display

CHR-ROM Dumping

This typein dumps the two pattern tables into separate tape files.

10 CLEAR &H7700
20 RESTORE 200
30 FOR I=0 TO 52
40 READ A$:A=VAL("&H"+A$)
50 POKE &H7700+I,A
60 NEXT
70 GOTO 400
80 '
200 DATA A9,0C,85,63          'LDA #0C   STA 63
210 DATA A5,63,D0,FC          'LDA 63    BNE FC
220 DATA AD,80,77             'LDA 7780
230 DATA 8D,06,20             'STA 2006
240 DATA AD,81,77             'LDA 7781
250 DATA 8D,06,20             'STA 2006
260 DATA A2,00                'LDX #00
270 DATA AD,07,20             'LDA 2007
280 DATA AD,07,20             'LDA 2007
290 DATA 9D,00,07             'STA 0700,X
300 DATA E8,D0,F7             'INX        BNE F7
310 DATA A5,9D,8D,05,20       'LDA 9D     STA 2005
320 DATA A5,69,8D,05,20       'LDA 69     STA 2005
330 DATA A9,0B,85,63          'LDA #0B    STA 63
340 DATA A5,63,D0,FC          'LDA 63     BNE FC
350 DATA 60                   'RTS
360 '
400 FOR I=0 TO 1
410 POKE &H500,4              '04=ASC
420 POKE &H501,ASC("F"),ASC("O"),ASC("N"),ASC("T"),0,13
430 POKE &H512,2,1            '0102 Bytes
440 POKE &H514,&HFE,6         'Start=06FE
450 POKE &H516,0,7
460 CALL &HB4FC
470 FOR J=0 TO 15 :PRINT J
480 POKE &H6FE,0
490 POKE &H6FF,J
500 IF J=15 THEN POKE &H6FF,&HFF
510 POKE &H7780,I*16+J
520 POKE &H7781,0
530 CALL &H7700
540 CALL &HB50D
550 NEXT:NEXT

CHR-RAM Loading

Note that this only loads one tape file, since the hardware modification only uses CHR-RAM for one of the pattern tables. The article demonstrates this by loading the X1’s character set into CHR-RAM, then running CGEN1 to map the background pattern table to it. (CTRL+D to revert the mapping)

The original listing erroneously used &H7F8x in lines 430/440 instead of the &H778x addresses used elsewhere. This has been corrected in the listing below.

10 CLEAR &H7700
20 RESTORE 200
30 FOR I=0 TO 52
40 READ A$:A=VAL("&H"+A$)
50 POKE &H7700+I,A
60 NEXT
70 GOTO 400
80 '
200 DATA A9,0C,85,63          'LDA #0C   STA 63
210 DATA A5,63,D0,FC          'LDA 63    BNE FC
220 DATA AD,80,77             'LDA 7780
230 DATA 8D,06,20             'STA 2006
240 DATA AD,81,77             'LDA 7781
250 DATA 8D,06,20             'STA 2006
260 DATA A2,00                'LDX #00
270 DATA BD,00,07             'LDA 0700,X
280 DATA AD,07,20             'STA 2007
300 DATA E8,D0,F7             'INX        BNE F7
310 DATA A5,9D,8D,05,20       'LDA 9D     STA 2005
320 DATA A5,69,8D,05,20       'LDA 69     STA 2005
330 DATA A9,0B,85,63          'LDA #0B    STA 63
340 DATA A5,63,D0,FC          'LDA 63     BNE FC
350 DATA 60                   'RTS
360 '
400 CALL &HB430
410 FOR I=0TO 15
420 CALL &HB401
430 POKE &H7780,I
440 POKE &H7781,0
450 CALL &H7700
460 NEXT

Famicom Research

These listings were published in a series of articles aimed at reverse-engineering the Famicom hardware & Family BASIC.

BASIC Dump List

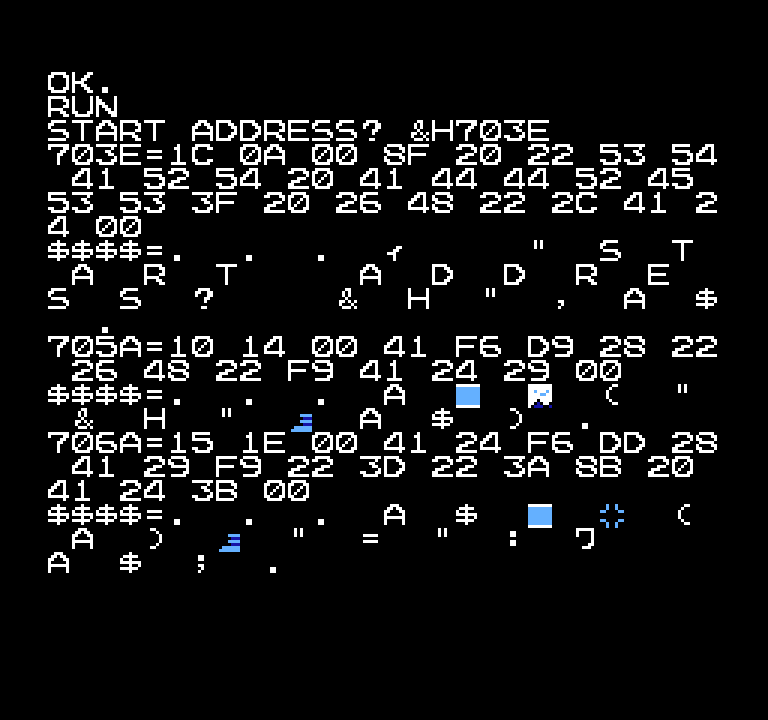

This dumps/visualises the compiled token/bytecode format used by Family BASIC. Enter a starting address (E.g. 0x703E on V2, 0x6006 on V3), then hold the space key to pause the listing process as needed.

10 INPUT "START ADDRESS? &H",A$
20 A=VAL("&H"+A$)
30 A$=HEX$(A)+"=":PRINT A$;
40 TX=A
50 PO=PEEK(A)
60 FOR I=1TO PO:A$=RIGHT$("00"+HEX$(PEEK(TX)),2)+" ":PRINT A$;
70 TX=TX+1:NEXT
80 PRINT:PRINT "$$$$=";
90 TX=A
100 FOR I=1TO PO:B=PEEK(TX):IF B<&H20 THEN B=ASC(".")
110 A$=CHR$(B):B$=A$+"  ":PRINT B$;
120 TX=TX+1:NEXT
130 A=A+PO
140 IF INKEY$=" " THEN 140
150 PRINT:GOTO 30

Dump listing

PRG-ROM Dumping

This dumps the Family BASIC PRG-ROM into 3 tape files.

10 POKE &H500,1             'ファイルの種類はマシン語
20 POKE &H501,ASC("B")      'ファイルネーム
30 POKE &H502,ASC("A")
40 POKE &H503,ASC("S")
50 POKE &H504,ASC("1"),0,13
60 POKE &H512,0,&H40        '8000H から4000Hバイト つまり
70 POKE &H514,0,&H80        '8000H 〜BFFFH までセーブする
80 POKE &H516,0,0
90 CALL &HB4FC:CALL &HB50D  'V 3.0では CALL &HB430
100 '                       '         CALL &HB401
110 POKE &H504,ASC("2")
120 POKE &H512,0,&H30       'C000H 〜EFFFH までセーブする
130 POKE &H514,0,&HC0
140 CALL &HB4FC:CALL &HB50D '100行に 同じ
145 '
150 POKE &H504,ASC("3")
160 POKE &H512,0,&H10       'F000H 〜FFFFH までセーブする
170 POKE &H514,0,&HF0
180 CALL &HB4FC:CALL &HB50D '100行に 同じ

Translation of Japanese comments (' is the shorthand for REM):

Disk BASIC

Disk BASIC is an unofficial Famicom Disk System (FDS) port of Family BASIC V2.1A, originally documented as a manual process in Backup Utilization Techniques Part 8 and Famicom Hacking Manual Vol. 2 & 3. I2 would later release the Disk BASIC Generator Kit for their Souseiki Fammy to automate the process and provide additional features.

Please visit this post for more information on Disk BASIC.

Character Editor

A graphics editor for Disk BASIC, primarily targeting the 16x16 sprite characters. Data can be saved to/loaded from cassette tape.

Repo

Character editor menuCharacter editor screen

Creation Tools

These typeins were provided in the Disk BASIC article to dump the Family BASIC cartridge data to tape format, in order to load them into a custom FDS program which creates Disk BASIC.

CHR-ROM Dumping

This is a modification of the typein from the CHR-RAM mod listed above. The CHR data is saved as a single file instead of two separate ones.

10 CLEAR &H7700
20 RESTORE 200
30 FOR I=0 TO 52
40 READ A$:A=VAL("&H"+A$)
50 POKE &H7700+I,A
60 NEXT
70 GOTO 400
80 '
200 DATA A9,0C,85,63          'LDA #0C   STA 63
210 DATA A5,63,D0,FC          'LDA 63    BNE FC
220 DATA AD,80,77             'LDA 7780
230 DATA 8D,06,20             'STA 2006
240 DATA AD,81,77             'LDA 7781
250 DATA 8D,06,20             'STA 2006
260 DATA A2,00                'LDX #00
270 DATA AD,07,20             'LDA 2007
280 DATA AD,07,20             'LDA 2007
290 DATA 9D,00,07             'STA 0700,X
300 DATA E8,D0,F7             'INX        BNE F7
310 DATA A5,9D,8D,05,20       'LDA 9D     STA 2005
320 DATA A5,69,8D,05,20       'LDA 69     STA 2005
330 DATA A9,0B,85,63          'LDA #0B    STA 63
340 DATA A5,63,D0,FC          'LDA 63     BNE FC
350 DATA 60                   'RTS
360 '
400 '
410 POKE &H500,4              '04=ASC
420 POKE &H501,ASC("F"),ASC("O"),ASC("N"),ASC("T"),0,13
430 POKE &H512,2,1            '0102 Bytes
440 POKE &H514,&HFE,6         'Start=06FE
450 POKE &H516,0,7
460 CALL &HB4FC
470 FOR I=0 TO 31:PRINT I;
480 POKE &H6FE,0
490 POKE &H6FF,I
500 IF I=31 THEN POKE &H6FF,&HFF
510 POKE &H7780,I
520 POKE &H7781,0
530 CALL &H7700
540 CALL &HB50D
550 NEXT

PRG-ROM Dumping

This typein was modified from the program in the Famicom Hardware Research section listed above. It dumps the minimum amount of PRG-ROM data necessary for Family BASIC to work on the FDS.

10 POKE &H500,1            'ファイルの種類はマシン語
20 POKE &H501,ASC("B")     'ファイルネーム
30 POKE &H502,ASC("A")
40 POKE &H503,ASC("S")
50 POKE &H504,ASC("1"),0,13
60 POKE &H512,&HEF,&H5F    '8000Hから4000Hバイトセーブする
70 POKE &H514,0,&H80
80 POKE &H516,0,0
90 CALL &HB4FC:CALL &HB50D

Translation of Japanese comments (' is the shorthand for REM):

The data size listed in the third comment is unaltered from the original program. The POKE statement on that line (60) has 0x5FEF in little endian, so this is actually 0x5FEF bytes between 0x8000-0xDFEE. This error is safe to ignore as comments are typically omitted when typing in listings.

Family BASIC V3
